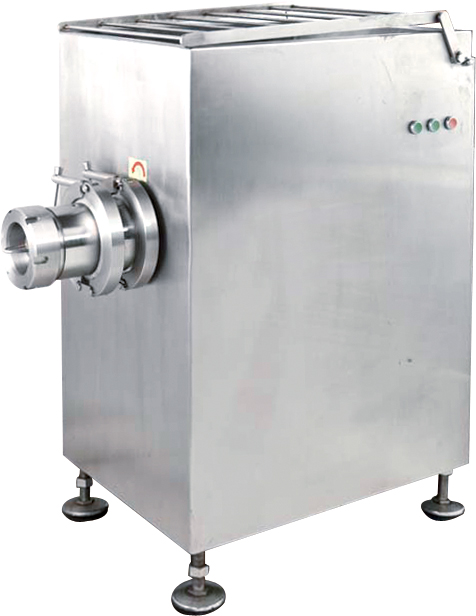

TW-120型凍肉絞肉機

TW-120 type meat mincer

功能：該機是肉食品加工的必備設備。可以將未解凍的肉塊或鮮肉直接進行絞切，制成規格不同的肉粒，為斬拌或攪拌做好前期準備工作。由于無須解凍，所以保持了營養及肉制的鮮美。

Function: This machine is a necessary equipment for processing the meat dish. Can will not thaw meat or meat cutter made directly, different specifications of the meat for grain, chopping or mixing preparation work. Because no thawing, so keep the nutrition and meat is delicious.

特點：本機料道與斗連為一體，絞肉部分及外包裝全部采用優質不銹鋼制成。光亮平整、易于清洗、符合食品衛生要求。絞龍軸大、入料口大、進料通暢、生產效率高。設計合理、絞切過程中磨擦力小、肉料溫升慢，利于肉制的保鮮。

Features: This machine feeding channel and fight together, the meat part and the outer packing all made of high quality stainless steel. Bright and smooth, easy to clean, to comply with food hygiene requirements. Auger shaft, a feeding inlet, smooth material, high production efficiency. Reasonable design, cutter in the process of friction force is small, the meat material temperature rise slowly, in favor of meat preservation.

主要技術參數：

The main technical parameters:

外形尺寸：980*560*1150mm

Size: 980*560*1150mm

加工能力：800-1200KG/H

Processing capacity: 800-1200KG/H

刀盤尺寸：Φ3-Φ30mm

Cutter size: Phi 3- Phi 30mm

最大肉塊尺寸：300*200mm

The biggest meat loaf size: 300*200mm

入料口尺寸：600*480mm

A feeding inlet size: 600*480mm

電機功率：380V，5.5KW

Motor power: 380V, 5.5KW

絞龍轉速：250r/min

Auger speed: 250r/min

機重：260KG

Machine weight: 260KG
