全自動行星式攪拌鍋產品簡介

Full automatic planetary stirring the pot products introduction

一、產品簡介

One, product introduction

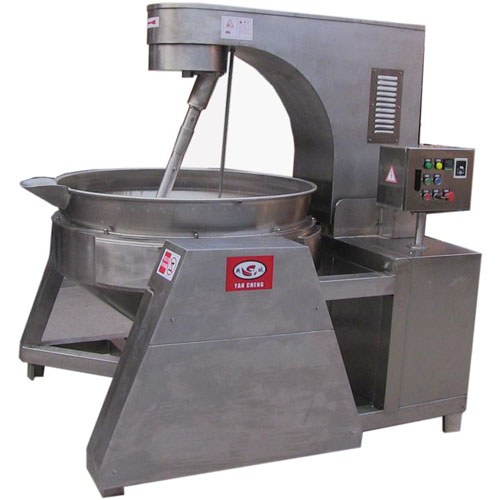

該系列產品采用不銹鋼鍋體，凡與食品接觸的零、部件均采用不銹鋼材料制造并進行拋光處理；攪拌系統采用自轉公轉相結合的方式其傳動比為不整數傳動比，保證鍋內無任何攪拌死點。該系列設備自動/液壓型是利用液壓推力使攪拌臂翻轉，免拆裝攪拌器，再利用液壓推力傾翻鍋體，易于進出原料節省人力；采用無級變頻調速器能將高粘度產物混合均勻加熱提高熱量，具有易于操作，工作效率高，耗能低，使用壽命長，結構緊湊，維修方便等特點，是性能優良的攪拌機。

The series of products adopt the stainless steel pot body, where contact with food, zero, parts are made of stainless steel and polishing treatment; ratio is not integer drive agitation system by rotation and revolution of the way of the combination of the drive, to ensure that the without any stirring dead. This series of equipment automatic / hydraulic type is the use of hydraulic thrust of the mixing arm turning, free disassembly blender, then use hydraulic thrust tilting pan body, easy to import raw materials saving manpower; adopts stepless frequency conversion governor to improve high viscosity products mixed heat evenly heating, with easy operation, high work efficiency, low energy consumption, service life long, compact structure, convenient repair, is the excellent performance of the mixer.

二、技術參數

Two, the technical parameters

鍋體容積

The volume of the pot body

/L 電機功率

/L motor power

/KW 轉速/min 攪拌形式 起臂

/KW speed /min mixing form up arm

/翻鍋形式 加熱形式 外形尺寸mm

/ turn pot heating mode shape dimension mm

300L 380V/2.2KW 20-25 行星/刮底 自動/液壓 燃?xì)?span id="tnzxptjljp" class="Apple-tab-span" style="white-space:pre"> 2100*2000*1950

300L 380V/2.2KW 20-25 planet / scraping bottom automatic / hydraulic gas 2100*2000*1950

500L 380V/3KW 20-25 行星/刮底 自動/液壓 燃?xì)?span id="tnzxptjljp" class="Apple-tab-span" style="white-space:pre"> 2250*2150*2100

500L 380V/3KW 20-25 planet / scraping bottom automatic / hydraulic gas 2250*2150*2100
