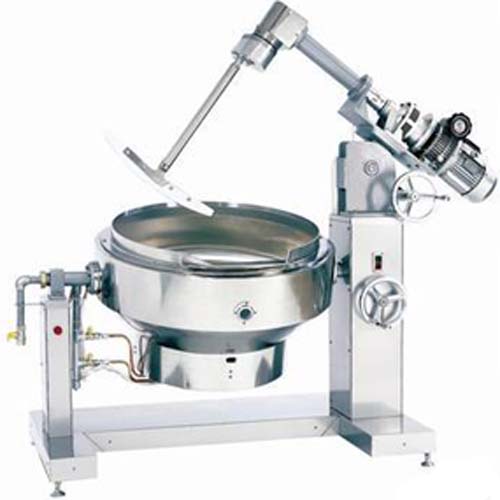

可傾式行星攪拌燃?xì)忮伄a(chǎn)品簡介

Tilting of planetary stirring gas cooker products introduction

一、本機特別適合物料的熬煮炒制，被廣泛用于餐飲、食品加工、鹵制品、調味品加工、休閑食品行業等領域。

One, the machine is especially suitable for the material boiling frying, widely used in food and beverage, food processing, halogen products, spices processing, leisure food industry.

二、主要結構：

Two, the main structure:

    由全不銹鋼機架、整體不銹鋼板封閉系統、節能燃燒器、加厚304不銹鋼板模壓鍋體、和鍋體傾倒系統、耐熱保溫裝置、可提升全不銹鋼行星旋轉機械手，無級調速動力傳輸系統等組成。

Full stainless steel can improve the planets revolving manipulator is composed of stainless steel frame, integral stainless steel plate closed system, energy-saving burner, thickening of 304 stainless steel plate molding pot, and the pot body, heat insulation device, pouring system, a stepless speed regulation power transmission system.

三、功能特點

Three, function characteristics

1、全不銹鋼結構，整體封閉無死角；

1, all stainless steel structure, the overall closed without dead angle;

2、鍋體采用加厚304不銹鋼板模壓成型；

2, the cooker body adopts thickening of 304 stainless steel plate molding;

3、獨特的節能燃燒器燃燒充分、熱效率高；

3, energy-saving burner unique full combustion, high thermal efficiency;

4、內裝耐熱保溫裝置，使用更節能，熱效率可達70%以上；

4, built-in heat insulation device, the use of more energy saving, thermal efficiency can reach more than 70%;

5、鍋體方便傾斜、出料、清洗十分方便；

5, the pot body tilt, discharging, convenient cleaning is very convenient;

6、可提升不銹鋼行星旋轉機械手炒制、加無級調速動力傳送系統、使物料炒制更均勻、刮鍋底無死角無盲區；

6, can promote the stainless steel planetary rotation mechanical hand frying, and stepless speed transmission system, to make the material more uniform, scraping the bottom of the pot fried without leaving no blind area;

7、加工量大、可以連續作業，節省人力和降低勞動強度。

7, big processing quantity, continuous operation, save labor and reduce labor intensity.

四、技術參數

Four, the technical parameters

型號 鍋體容積

Models of the pot body volume

/L 鍋體直徑

/L pot body diameter

/mm 電機功率

/mm motor power

/KW 起臂

/KW arm

/翻鍋形式 轉速 熱負荷 燃?xì)夂牧? 外形尺寸

/ turn pot form speed thermal load gas consumption dimensions

YC-RJS300 300L φ1000

YC-RJS300 300L 1000

380V  1.5KW

380V 1.5KW

手動 自轉：12-60rpm;

Manual rotation: 12-60rpm;

公轉：8-40 rpm 81.4kw=

The Revolution: 8-40 rpm 81.4kw=

70000kcal/h 液化氣 6.3kg/h 2400*1300*2060

70000kcal/h 6.3kg/h liquefied gas 2400*1300*2060

天然氣 6.2kg/h

Natural gas 6.2kg/h

管道煤氣 10.7kg/h

Gas pipeline 10.7kg/h

管道煤氣 10.7kg/h

Gas pipeline 10.7kg/h
