雙缸電熱油炸機

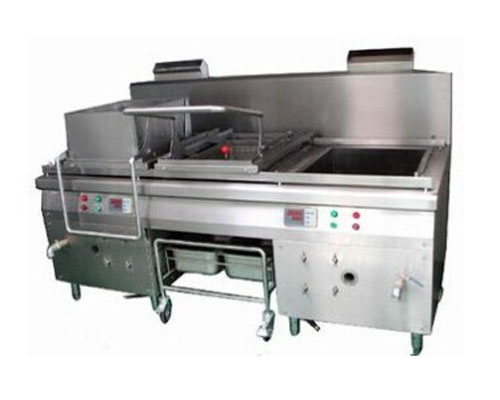

Double cylinder electric frying machine

簡介

Introduction

1.用途：

1 use:

  廣泛適用于炸雞，魚，花生米，蔬菜，面食，薯片等食品加工企業和大，中，小型賓館，飯店，招待所，學校，單位食堂等餐飲服務行業。

Widely applicable to fried chicken, fish, peanuts, vegetables, pasta, potato chips and other food processing enterprises and big, in, small hotels, hotels, hostels, schools, canteens and other food service industry.

2.特點：

2 characteristics:

（1）操作簡單，使用方便，故障率少。

(1) has the advantages of simple operation, convenient use, low failure rate.

（2）自動控溫，加熱均勻，溫度偏差小。

(2) automatic temperature control, uniform heating, low temperature deviation.

（3）一機多用，可炸多種食品。油煙少，方便，省時，環保。

(3) the use of a machine, a variety of food can be fried. Smoke less, convenient, time saving, environmental protection.

3.機器參數：外形尺寸：1280*700*1100

3 the machine parameters: Dimension: 1280*700*1100

              功率：380V/12-24KW

Power: 380V/12-24KW

配有雙筐

Equipped with double basket

型號 額定功率 額定電壓(V) 單槽容油量(L) 工藝 重量 外形尺寸( mm)

Model rated power (kw) rated voltage (V) single groove oil capacity (L) process of weight (kg) size (mm)

YC-YZ2

YC-YZ2

油水分離電炸鍋（雙缸） 24kw 380V 60 油水混合 150 1280*700*1100

The oil-water separation fryer (double cylinder) 24kw 380V 150 1280*700*1100 60 oil-water mixture

4.結構原理

4 structure principle

本產品采用油水混合加熱工藝，根據油水的密度差，油分離在上層，水在下層，可有效分離油炸，使油有效的循環利用，油炸機采取中部加熱方式可使油均勻受熱，高效利用。

This product uses the oil-water mixture of heating process, according to the oil-water density difference, separation of oil in water in the upper, lower, and can effectively separate the frying oil, make effective recycling, frying machine adopt central heating mode can make the oil evenly heated, efficient utilization.
