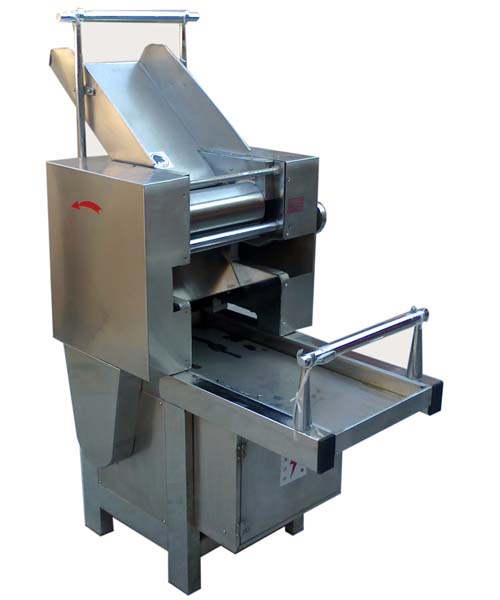

YC-MY80型面條機

YC-MY80 type noodles machine

用途：本機可將面類物料自加工成面片或面條形狀。

Use: This machine can be surface material from processed into patches or noodles shape.

特點：設備采用O型皮帶和齒輪及滾動軸承傳動，具有結構緊湊、運行平穩、安全節能、效率高、操作方便的優點。

Features: the equipment adopts O type belt and gear and rolling bearing transmission, has the advantages of compact structure, stable operation, safety and energy saving, high efficiency, convenient operation.

適用范圍：設備可用于面食加工廠、部隊食堂、餐飲公司等。

Scope of application: the device can be used for wheaten food processing factory, army canteens, catering company etc..

工作原理：物料通過兩棍向內旋轉擠壓成面片或面條。

Working principle: material through the two stick inward rotating extrusion into patches or noodles.

技術參數：

Technical parameters:

軋輥規格：Φ120×260mm

Roll specifications: Phi 120 * 260mm

切面寬度：1-10mm

Section width: 1-10mm

切面厚度1-3mm

Section thickness 1-3mm

軋輥轉速：32r/min

Roll speed: 32r/min

配套動力：1.5kw/380v

Auxiliary power: 1.5kw/380v

工作效率：80-100 kg/h

Efficiency: 80-100 kg/h

外形尺寸：880*600*1450mm

Size: 880*600*1450mm

材    質：采用不銹鋼加工制作

Material: stainless steel manufacture
