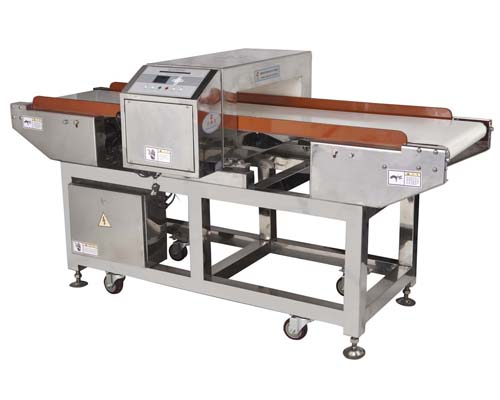

金屬探測儀簡介

Introduction of metal detector

用途：本機利用電磁感原理來探測小食品、化工產品、服裝、制鞋、海洋水產、漁業、干鮮水產、面食、冷凍食品、干鮮蔬果、糖、茶、藥品等行業的金屬異物，檢測原料或產品中夾雜或漏落的鐵、非鐵、鉛等各種金屬雜質等。

Use: the machine by using electromagnetic induction principle to detect the small food, chemical products, garments, shoemaking, marine aquaculture, fishery, dry and fresh aquatic products, frozen food, dried pasta, fresh Vegetable & Fruit metal foreign body, sugar, tea, medicine industry, inclusions or hoods detection of raw materials or products of iron in non iron, lead, other kinds of metal impurities.

原理：設備有很高的探測靈敏度；鐵磁類金屬進入探測區域?qū)⒂绊懱綔y區域的磁力線分布，進而影響了固定范圍的磁通。非鐵磁類金屬進入探測區域?qū)�產生渦流效應，也會使探測區域的磁場分布發生變化。

Principle: the equipment detection sensitivity is high; the ferromagnetic metal into the detection region will affect the distribution of magnetic line of force detection zone, thereby affecting the flux of fixed range. The vortex effect of non ferromagnetic metal into the detection region, also can make the distribution of magnetic field change detection zone.

特點：

The characteristics of:

最先進的DSP處理芯片，超高靈敏度；

The most advanced DSP processing chip, super high sensitivity;

智能液晶顯示功能，智能操作系統，功能更強大；

Intelligent liquid crystal display function, intelligent operating system, more powerful;

較強的穩定性，超強的抗干擾能力和適應能力；

Strong stability, strong anti-interference ability and ability to adapt;

符合HACCP體系，QS體系和ISO體系相關技術指標；

In accordance with the HACCP system, the related technical indexes of QS system and ISO system;

雙路信號探測電路合并技術，準確探測鐵與非鐵金屬雜質；

Dual signal detection circuit with technology, accurate detection of ferrous and non ferrous metal impurities;

雙路信號顯示功能；會根據金屬大小顯示不同的感應強度；

Dual signal display function; according to the metal size display different induction;

輸送帶及托板采用符合美國“FDA”標準的白色無毒材料；

Conveyor and pallet use white nontoxic materials that meet the FDA standard;

IP65的防水等級，適應于潮濕、高溫及低溫工作環境；

Waterproof grade IP65, adapted to the humid, high temperature and low temperature working environment;

采用無極調速馬達，輸送帶速度隨意調；

Adopting stepless speed regulation motor, belt speed adjusted;

全不銹鋼材質，美觀大方；

All stainless steel, beautiful appearance;

技術參數：

Technical parameters:

外形尺寸：1600*730*860 mm

Size: 1600*730*860 mm

控測口徑：460*500mm

Control measuring diameter: 460*500mm

探測靈敏度：Feφ3.0mm SUS φ4.5mm Non-Fe φ3.0mm

Detection sensitivity: Fe 3.0mm SUS 4.5mm Non-Fe Phi Phi Phi 3.0mm

控測方式：電感應

Control mode: electric induction

報警方式：聲光報警

Methods: the alarm sound and light alarm

電機功率：220V，120W

Motor power: 220V, 120W

機器重量：200KG

Machine weight: 200KG
