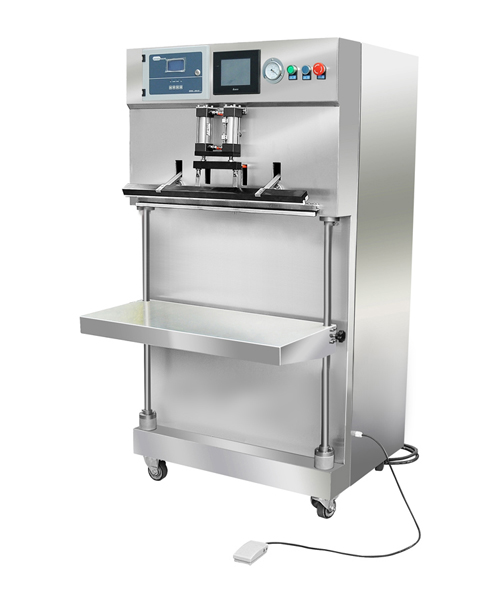

氣調保鮮包裝機簡介

Adjustable gas introduction fresh-keeping packaging machine

用途：氣調包裝是一種新型食品保鮮技術，采用保護性混合氣體（通常為CO2、N2、O2）置換包裝內的空氣，利用各種保護性氣體所起的不同作用，抑制引起食品變質的大多數微生物生長繁殖，并使活性食物（果蔬等植物性食品）呼吸速度降低，從而使食品保鮮并延長保鮮期。

Use: modified atmosphere packaging is a new technology for food preservation, protected by the mixed gas (usually CO2, N2, O2) replacement packaging in the air, different role played by the use of various protective gas, inhibition of microbial food spoilage caused most of the growth and reproduction, and the activity of food (fruits and vegetables and other plant food to reduce the rate of breathing), so that fresh food and prolong the storage period.

特點：

The characteristics of:

1、氣調包裝具有使食品保質、保鮮、保色、保形、保味的特點，風靡歐美市場。

1, modified atmosphere packaging with the food quality, freshness, color retention, conformal, security flavor characteristics, popular in Europe and America market.

2、采用電、氣、機控制，由可編程序控制器（PLC）配合觸摸屏實現人機界面對話，各部分動作及控制參數均可由PLC設定、修改�？刂品奖憧煽� (內部操作系統同貴公司目前使用的自動盒式氣調保鮮包裝機。

By 2, electricity, gas, machine control, the programmable logic controller (PLC) with touch screen to realize man-machine interface dialogue, action and control parameters of each part can be set by PLC, modify. Convenient and reliable automatic control (modified atmosphere fresh-keeping packing machine internal operating system with your company currently in use.

3、將裝有物品的塑料袋袋口套入充氣嘴，抽真空、充氣、封口等自動完成。

3, will be fitted with a plastic bag is sheathed in goods inflation nozzle, vacuum pumping and inflating and sealing automatically.

4、機架等主要構件均由不銹鋼制造，符合食品衛生要求。

The 4 main components, frame are made by stainless steel, in line with food hygiene requirements.

5、工作臺架高度可調，適應1—50kg不同包裝袋要求,尤其適用于大袋子包裝。

5, work bench height adjustable, adapt to 1 - 50kg packing bags of different requirements, especially for large bag packing.

技術參數：

Technical parameters:

型號 封口尺寸mm 電機功率 工作氣壓 外形尺寸mm 包裝能力

Type sealing size mm motor power working pressure mm dimensions packaging capacity

YC-CD600 600 380V/1.2 KW 0.6-0.8Mpa 800*900*1700 500-1000KW/H

YC-CD600 600 380V/1.2 KW 0.6-0.8Mpa 800*900*1700 500-1000KW/H
